Solid Wire compare to Flux-Cored Wire: When to Use Them and Why

Comparing the advantages of MIG and flux cored

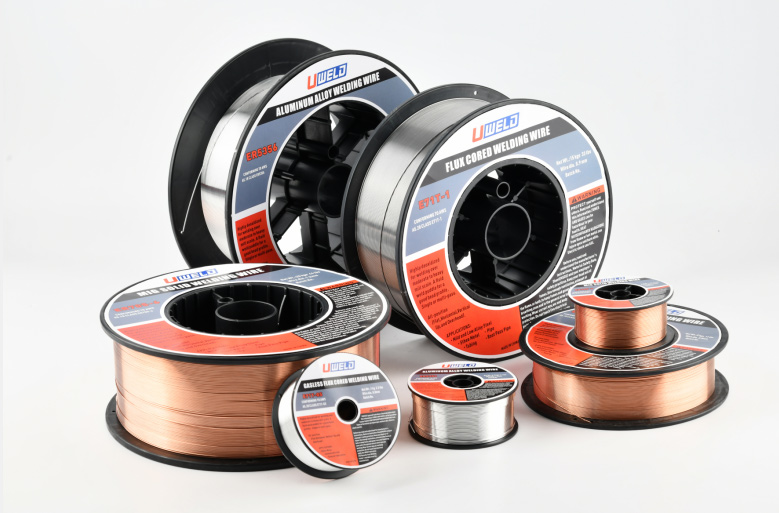

UWELD MIG welding ER70S-6 and flux-cored E71T-1 / E71T-GS welding possess different characteristics that welders must evaluate when selecting which process to use. To achieve the best results, consider the following factors: thickness of the material, proper shielding gas, wire feed speed and voltage settings, location of the jobsite, and weld appearance.
Solid wire/MIG basics
MIG power sources use a continuous solid wire electrode for filler metal and require a shielding gas delivered from a pressurized gas bottle. Mild steel solid wires are usually plated with copper to prevent oxidation, aid in electrical conductivity and help increase the life of the welding contact tip. The shielding gas protects the molten weld pool from contaminants present in the surrounding atmosphere. The most common shielding gas combination is 75% argon and 25% carbon dioxide. While using solid wire outdoors, welders should use caution and prevent any wind from blowing the shielding gas coverage away from the welding arc. Windshields may need to be used.

There are two types of UWELD flux-cored wires — gas shielded E71T-1 and self shielded E71T-GS. Gas-shielded flux-cored wires require external shielding gas, and the slag is easy to remove. Consider using gas-shielded flux-cored wires when welding on thicker metals or in out-of-position applications. Gas-shielded flux-cored wires have a flux coating that solidifies more quickly than the molten weld material. As a result, it creates a shelf to hold the molten pool when welding overhead or vertically up. Self-shielding flux-cored wire does not require external shielding gas because the weld pool is protected by gas generated when flux from the wire is burned. As a result, self-shielding flux-cored wire is more portable because it does not require an external gas tank.
What to consider when choosing solid or flux-cored wire
Many welders believe that weld appearance is an important factor. When working on materials less than 3/16-inch thick down to thin sheet metal (24 gauge), solid wire will produce a clean looking weld. For example, a short-circuit transfer with .030-inch solid wire set at 18-19 volts with 160-170 amps and using 75% argon and 25% carbon dioxide shielding gas will usually produce little spatter, create a smaller heat-affected area and reduce chances of burn-through. As a result, many automotive enthusiasts who specialize in bodywork or those who work with thinner applications prefer solid wire in their operations.
The welder must also consider the location of the jobsite when choosing between solid and flux-cored wire. In environments such as windy locations, solid wire or gas-shielded flux-cored wire are more difficult to use because exposing the shielding gas to wind can compromise the weld integrity. Typically, the loss of shielding gas will produce porosity visible in the weld bead.
On the other hand, UWELD self-shielded flux-cored wire E71T-GS is ideal for welding outdoors or in windy conditions. The welder does not have to set up windshields to protect the shielding gases from being blown away because the shielding gas is generated from the burning flux. Since self-shielded flux-cored wire does not require external shielding gas, it is also more portable than solid wire. This portability is ideal in agricultural applications where field equipment can break down far from the shop. If you are welding thicker metals (16 gauge and above), self-shielded flux-cored wire also provides excellent penetration.
Thickness, type of application and parameter settings
Many novice welders attempt to use a one-size-fits-all wire and shielding gas combination for multiple applications. The most common wire and gas combinations (for solid wire) are .035-inch- diameter wire used with a 75% argon and 25% carbon dioxide shielding gas. When welding thicker material, however, consideration needs to be given to welding power source output, as well as welding wire diameter. If the .035-inch wire is selected for thicker materials, and the power source is one that is plugged into a 115-volt circuit, the resulting amperage output may not be sufficient to make quality welds. This increases the risk of cold lap or lack of fusion.
Attempting to use too small of a solid wire for thicker applications (such as on A-frames of an automobile) increases the chance of lower penetration in the root and could require more than one welding pass. Misapplication of the solid wire (even though strong enough) may also not provide adequate penetration on thicker material.
Although more expensive than solid wire, flux-cored wire could help you gain productivity. Flux-cored wire typically has the ability to handle the welding of dirtier materials that may have higher levels of rust, mill scale or oil. Although cleaning is always the proper method of preparing the steel, flux-cored wires contain de-oxidizing elements that trap these contaminants in the weld pool and hold them in the slag coverage, typically preventing the associated weld problems found when welding dirtier steels. When compared to solid wire, flux-cored wire also increases penetration on the sidewalls and offers the advantage of better deposition rates (the amount of weld metal deposited in a given time period, measured in pounds per hour). Although the welder is initially spending more on materials for flux-cored wire, the savings are realized in the decreased production time.
Which is better, solid wire or flux-cored wire?
Neither wire is superior to the other. They simply have different properties that work better on certain applications. As far as performance is concerned, both types of wire produce sound welds with good weld bead appearances when applied correctly and used within the proper parameter settings. Solid wire provides deep penetration in the root and usually has little spatter. Flux-cored wire has a larger ball-type transfer and produces low spatter levels. In addition, flux-cored wire produces a rounder penetration profile with excellent sidewall fusion.
As far as user appeal, both solid wire and flux-cored wire are relatively easy to use and are ideal for novice and occasional welders working in automotive, farming and home hobby applications. Welder appeal on solid wire may be better on thinner applications because there is no slag to remove, it is ready to paint and the weld beads may be more aesthetically pleasing.
Most important, remember not to fall into the one-size-fits-all mindset. Solid wire, self-shielded flux-cored wire and gas-shielded flux-cored wire all work well — provided they are applied correctly. The type of wire you choose will be contingent upon the location of the jobsite, thickness of the application, proper shielding gas combination and the type of equipment available. You should always clean the workpiece before welding to ensure optimum weld quality and prevent impurities from becoming trapped in the weld bead. To achieve the best possible results, be willing to make adjustments based on the jobsite variables and consider having both solid and flux-cored wire available.
