Products   Electrode dryer   Electrode Dryer

Electrode Dryer

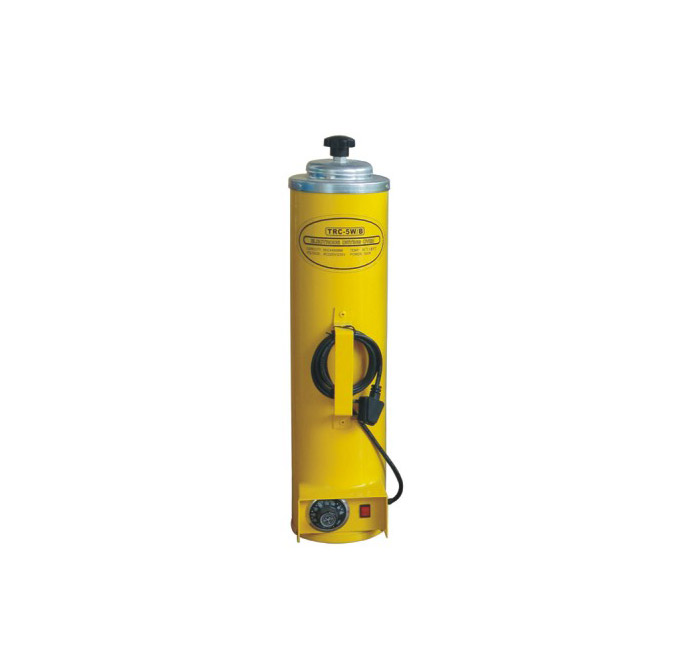

TRC-5W/B

prodetail

Features

1. Different design available: American style, Japanese style, Australian style and other different styles.
2. Capacity of electrode: from 5kgs to 500kgs.
3. Temperature pre-set or temperature adjustable up to 500°C available.
4. Inner material is galvanization, or stainless steel.
5. Input voltage can make according to your requirements.
6. Can also add the temperature meter in gauge or LED
7. AC power cord and DC power cord both available
8. 2 kinds of heating available: stainless steel heating tube in internal, or electric heating wire around the internal.

Specification
Model
TRC-5W/B
TRC-10W/B
TRC-5TC
TRC-10TC
PF-1C
PF-2C
Electrode Capacity
5KG
10KG
5KG
10KG
10KG
5KG
Input Voltage
AC 230V or 110V
AC230V
Power
260W/120W
360/180W
260W
360W
500W 50-190W
600W 80-240W
Max Temperature
500-150℃
50-300℃
150℃
Electrode Length
450MM
Inside Size
86*465H
108*465H
86*465H
108*465
86*465
108*465
Overall Size(L*W*H)
145*200*590mm
210*167*590mm
165*195*670mm
190*225*670mm
130*130*640mm
170*170*650mm
Weight(kg)
3.9
4.3
3.2
4.1
3.8
4.8
