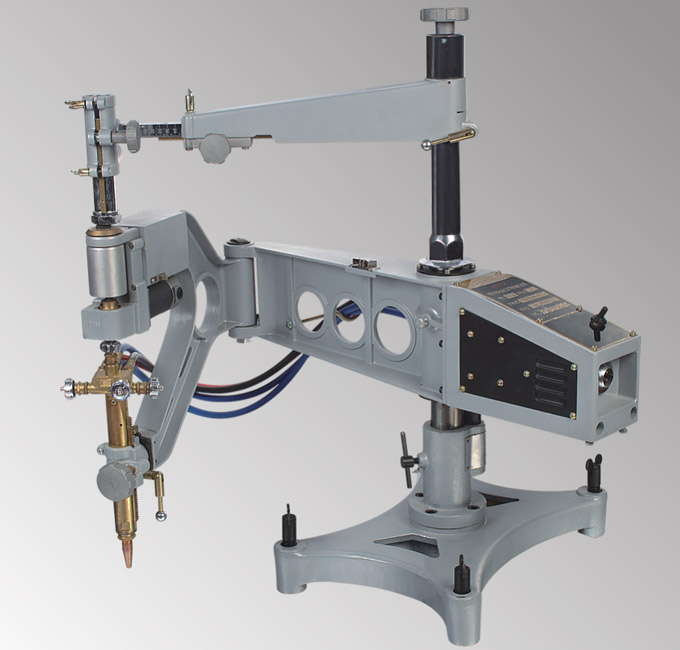

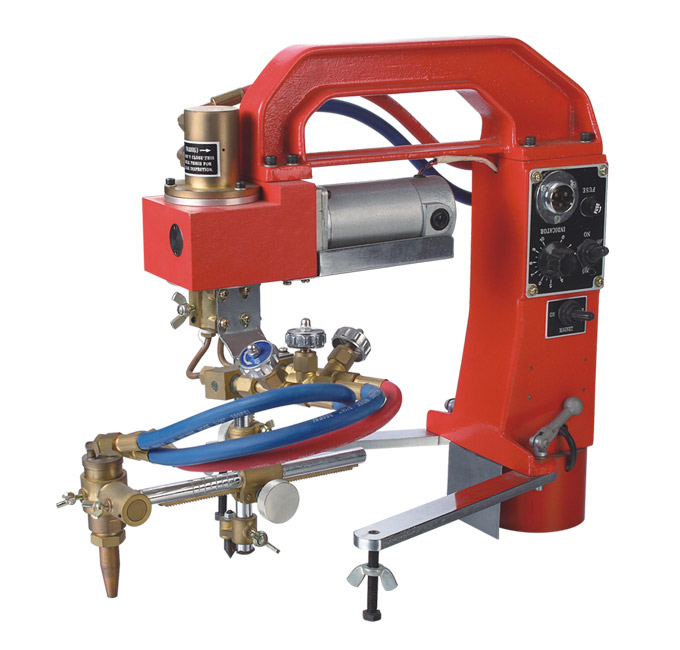

These machines are primarily meant for cutting different shapes such as stars, hexagons, squares, rectangles, circles, triangles, etc. It can also cut straight lines and Bevels up to 45o.
- The motor driven Electro Magnetic Tracing Head on the carriage arm traces the profile on the template. This enables the torch to duplicate any intricate shape provided on the template of the machine.
- The machines are designed with Pantograph type arms providing a direct line guiding system
- A simple and accurate magnetic tracing system helps in maintaining repeatability of the flame cut parts
- Precise Ball and Needle bearing design of hinges ensure free and frictionless tracing, enabling greater cutting accuracy
- The speed of the machine can be varied with an indexed selector knob. The tracing head can be moved in Clockwise or Anticlockwise direction by a selector switch.
- Light weight, portable yet robust shape cutting machines suitable for on field jobs as well as for factories
|
Model: |
GC2-150/150R |
GC2-150A |
GC2-150T |
|
Rectangle Cutting Area: |
400*900 mm |
340*1700 mm |
400*900 mm |
|
Template position |
mounted on template holder |
mounted on template holder or Central Shaft |
mounted on template holder |
|
Square cutting Area |
500*500mm |
1270*1270mm |
500*500mm |
|
Circle cutting Area |
Ø20-600 |
Ø20-1800 |
Ø20-600 |
|
Max cutting length |
1200mm |
1650mm |
1200mm |
|
Max. Cutting Thickness: |
100 mm |
100MM |
200 |
|
Cutting Speed with 12.7 mmtracer: |
100 to 750 mm/min |
||
|
Control: |
S.C.R Control |
||
|
Torch: |
Injector Type to suit Acetylene / LPG |
||
|
Gross Weight: |
57/62kgs. |
62KG |
59KG |
|
Dimensions (m): |
1190*335*800/870 |
1390*335*800 |
1190*335*1000 |
