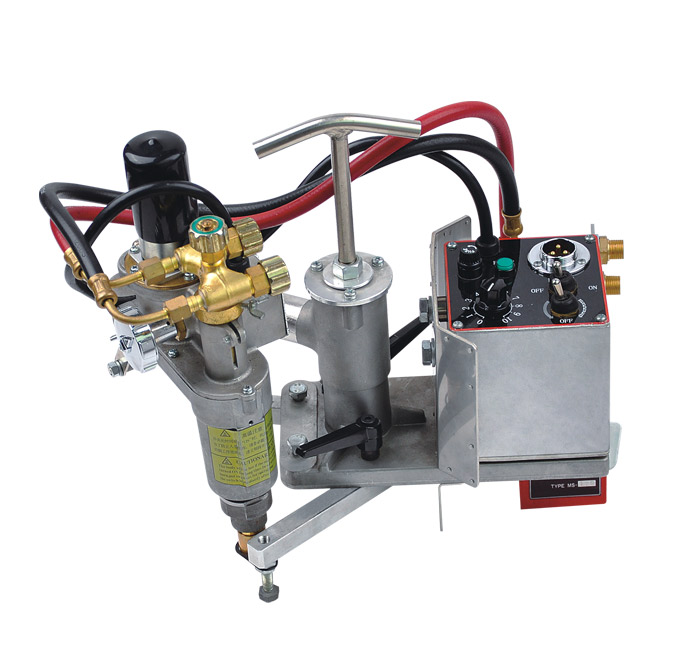

CG-30 Straight Cutting Machine

1C019-0002 UW-1601



The CG-30 is an affordable portable oxy fuel cutting machine. It is known around the world as one of the best portable cutting machines in the industry.

Single or Dual Torch Models - Performs high quality straight, circle and bevel cuts; single model includes 1 torch and 3 tips; dual model includes 2 torches and 6 tips; both include 1800mm (72in) rail

Stepless Drive System -  Maintains constant travel speed even with high temperatures ensuring stable, trouble-free cutting

Multiple Use Oxy Fuel Machine - Performs straight line and optional circle oxy fuel cutting
Light Weight - 9.5 kgs (20.9 lbs), easy to carry and use yet rugged enough to be a true workhorse
Use on Radiagraph Track - Possible replacement for discontinued Radiagraph; user can use existing track

Extendable 1800mm (72in) Track Sections - Cut longer parts. 2 more pcs 1800mm tracks are recommended per set machine.

High Quality Tips - Superior design torch tips are included to ensure fast, smooth cuts

Optional Snap Valve - One-touch on/off gas valve.



Cutting Capacity:

5 to 60 mm


0o to 45o

Straight Cuts:

1.8 m and multiples

Circle Cutting (Diameter):

30 to 2400 mm

Cutting Speed:

180 to 800 mm/min(50HZ)
100 to1000 mm/min(60HZ)


Injector Type to suit Acetylene / LPG

Gas Connection (Fuel LH & Oxygen RH):

1/4" G,91/6o

Gross Weight:

10 kgs w/1 torch.
14.5kgs w/2 torches

Dimensions W/O rail (m):
